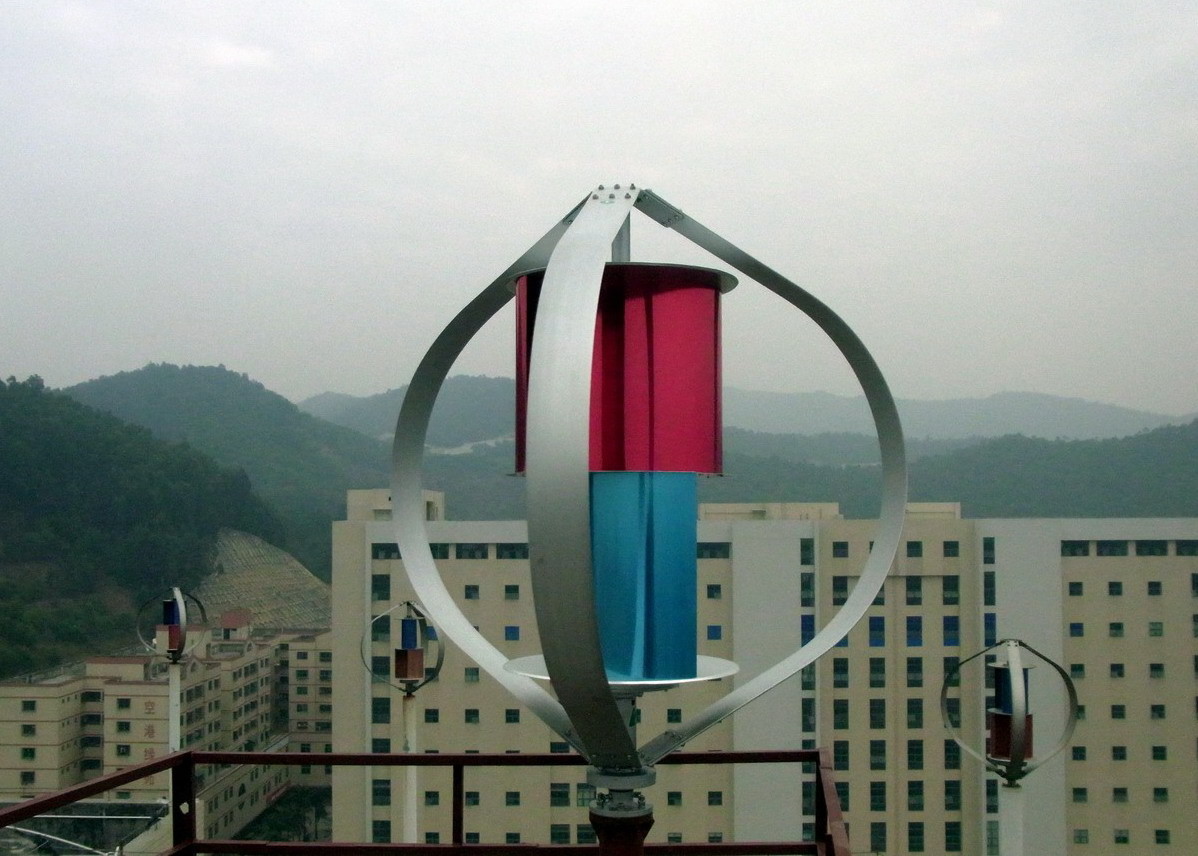

Office / House Small Maglev Vertical Axis Wind Turbine High Efficiency
Quick Detail:
1, No Vibration-Means you can mount anywhere including on your house roof
2, No Noisy-Means quiet enjoyment of living
3, No Frication-Means the equipment lasts longer due to no wear & tear
4, Low start-up wind speed-Means higher average power output
5, No rust - use Aluminum Alloy material, technical treatment by DACROMAT
6, No fade- after anti-oxidation treatment
7, Strong adaptability-means can be used for land, beaches, weak offshZore wind
Regional power, lighting etc.
Description
Roof top installation is easy for farmers, and we have competive solution for the application. With our rich exeprience, hope can help more electricity shortage countries solve residential independent power.
The HECO series of maglev vertical axis wind turbine undergoes a continuous improvement process, which incorporates exterior design, utility design, electrical engineering, dynamic engineering, power mechanics, aviation air engineering, wind tunnel testing, lightening protection, computer simulation techniques and other multiple specialities.
Honor Eco maglev wind generator have 6 models, 200W, 300W, 400W and 600W, 1KW, 3KW are for hybrid street lighting, remote site monitoring, home use, telecom station or any place need independent power.
Specification
|
Maglev Vertical Axis Wind Turbine
|
|
Type
|
HECO200
|
HECO300
|
HECO600
|
HECO1000
|
HECO3000
|
|
Rated Power
|
200W
|
300W
|
600W
|
1000W
|
3000W
|
|
Size(Height / Diameter)
|
1035/1150mm
|
1090/1240mm
|
1320/1540mm
|
2200/2400mm
|
3370/3700mm
|
|
Turbine Weight
|
22.5KG
|
31KG
|
49KG
|
180KG
|
415KG
|
|
Blades Material
|
Aluminum alloy
|
Aluminum alloy
|
aluminum alloy
|
aluminum alloy
|
aluminum alloy
|
|
Blades Qty.
|
3
|
3
|
3
|
3
|
3
|
|
Start-up
wind speed
|
1m/s
|
1.3m/s
|
1.3m/s
|
1.5m/s
|
1.5m/s
|
|
Cut in
wind speed
|
2m/s
|
3m/s
|
3m/s
|
5m/s, 3.5m/s
|
3.5m/s
|
|
Rated Wind Speed
|
13m/s
|
12m/s
|
13m/s
|
13m/s
|
13m/s
|
|
Cut out Wind Speed
|
16m/s
|
15m/s
|
15m/s
|
15m/s
|
15m/s
|
|
Survival Wind Speed
|
60m/s
|
65m/s
|
65m/s
|
60m/s
|
60m/s
|
|
Generator Type
|
AC,3 phases
|
AC,3 phases
|
AC,3 phases
|
AC,3 phases
|
AC,3 phases
|
|
Controller output voltage
|
DC12V
|
DC24V/12V
|
DC24V/12V/48V
|
DC48V/24V
|
DC48/96V
|
|
Controller output current
|
<12Amp
|
<20Amp
|
<30Amp
|
<50Amp
|
<130Amp
|
|
Controller braking system
|
3-Phase /short circuit protection/ NFB/
Manual break or automatic brake optional
|
|
Ambient Temperature
|
-30～50 ℃
|
-40～50 ℃
|
-40～50 ℃
|
-40～50 ℃
|
-40～50 ℃
|
Application:
The practical appication of the Maglev Vertical Axis Wind Turbine as below:
1) Power supply for ships
2) Electricity for agriculture and fishery
3) Landscape education of wind energy and electricity
4) Wind-hydraulic generation system
5) Public electricity supply for building
6) Romote area
7) Independent house
8) Correspondence base
9) Street light
10) Electricity supply for community
11) Traffic signals
12) Independent smart power island
Competitive Advantage:
Horizontal Axis Wind Turbine (HAWT) VS Maglev Vertical axis Wind Turbine (VAWT)
| ITEM |
HAWT |
VAWT |
| Start Wind Speed |
High (above 3m/s) |
Low (1m/s) |
| Wind Conditions Requied |
Require Stable Wind Direction |
Any Wind Direction |
| Encountered Turbulence |
Reduce the Efficiency |
Efficiency is not affected |
| Power Stablitily |
Change by Wind Direction |
Without any Wind Effect |
| Noisy |
Large(45 decibels or more) |
Low noisy (because no mechanical frication) |
| Product Appearance |
Normal |
Beautiful |
| Installation Height |
High(need to avoid the terrain turbulence) |
Low(not afraid of turbulence) |
| Installation Location |
Just in open area like suburb |
Any location |
| Generator Material |
Plastic or composite |
Aluminum Alloy |
| Structure Strength |
Poor(easy to broken) |
High(double strengthen arm) |
| Resistance of Wind Speed |
Poor(about 40m/s) |
High (lower 65m/s) |
